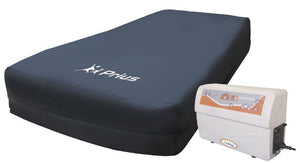

Prius Rhythm Multi 36, 42 or 48 inches LAL AP Mattress System

Prius Rhythm Multi 36, 42 or 48 inches LAL AP Mattress System
36", 42" or 48" 3-1 Alternation, 8" Replacement, True Low Air Loss, Pulsation, Happy Heel Control
Features
- True Low Air Loss, Pulsation, 3-1 Alternation and Static Therapies in one system
-
8” air cell mattress replacement
-
3-1 alternation and static
-
Low air loss therapy
-
Pulsation therapy
-

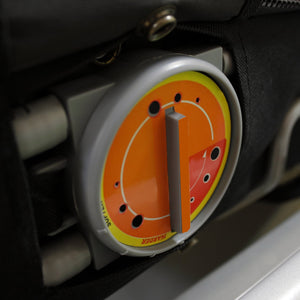

Happy Heel – dial softness control for the foot section
-
Auto Firm provides immediate firm surface
-

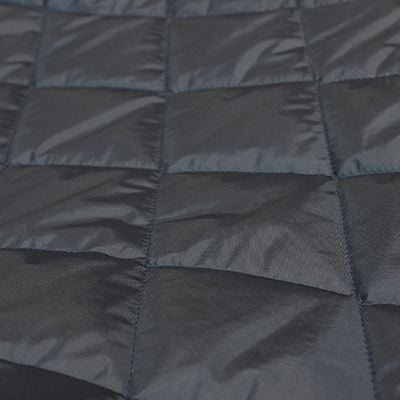

High vapor permeable and quilted nylon cover
-

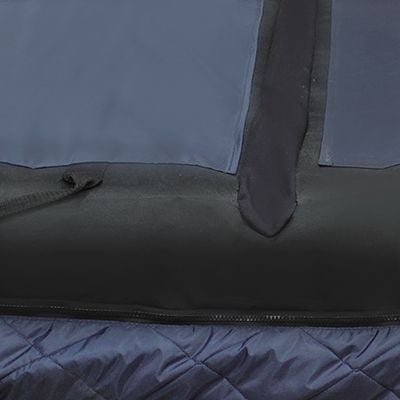

Optional cover available for fall prevention – built in 4.5” foam bolster with egress cutout.
-
2” convoluted foam base
-

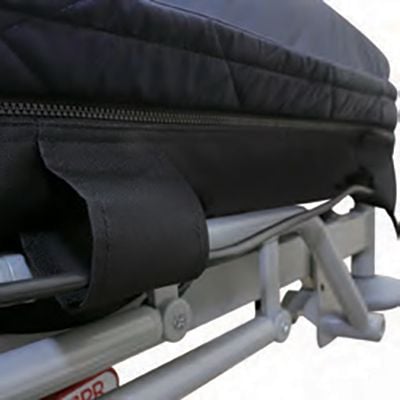

Cable Management System – provides conduit for powers cords to stay off floor, eliminate tripping hazards
-
Integrated glide sheet to base cover for easy transferring
-
Visual and audio alarm for low pressure and power failure with alarm mute function
-
Keypad lock out function
-

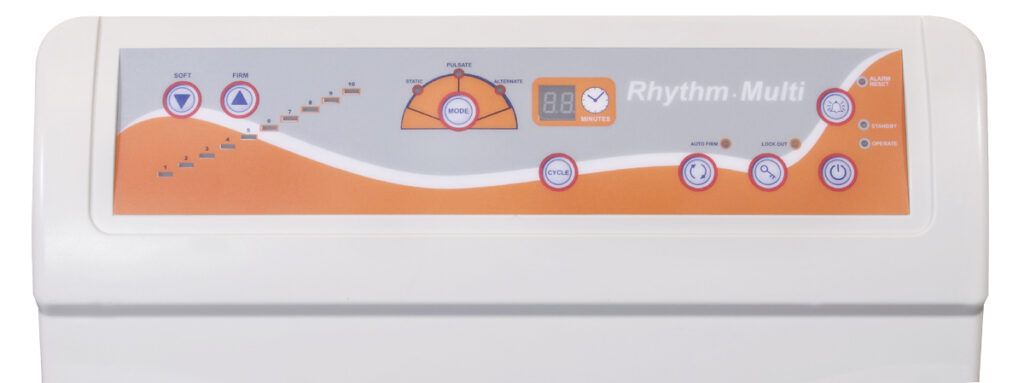

10 electronic adjustable comfort settings
-
Modularized design for air mattress
-
Integrated power cable retainer
-
SWL 600lb for 36”, 750lb for 39”, 800lb for 42”, 1000lb for 48”
-

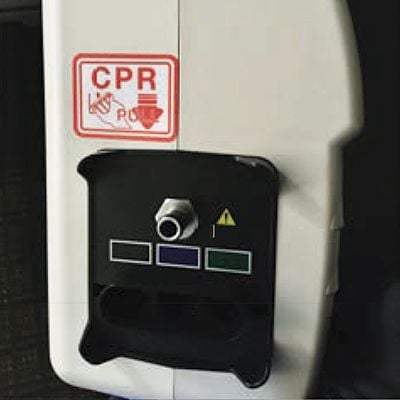

Quick CPR deflation within 20 seconds
Clinical Considerations:
Multiple stage 1, 2, 3 or 4 pressure ulcer
Specifications
Control Unit
Model Name |
Rhythm Multi |
Model No. |
FC-PHR0009 |
Size (inch) L x W x H |
17.7” x 6.8” x 10.8” |
Weight (lbs.) |
13.2 |
Cycle Time |
3~95 min |
Min Operating Pressure |
10 +/- 3mmHg |
Max Operating Pressure |
61 +/- 4mmHg |
Flow-rate |
1200 L per minute |
Rated Voltage |
AC 110-120V |
Rated Frequency |
60 Hz |
Fuse Rating |
5A 250V |
Max Current |
5A |
Classification |
Class I, Type BF Not AP or AGP type |
Mode of Operation |
Continuous |
Environment (Temperature) |
Operation: 15℃to 35℃(59F to 95F) |
Storage:5℃to 60℃(41F to 140F) |
|
Environment (Humidity) |
Operation: 30% to 75% non-condensing |
Storage: 30% to 100% non-condensing |
|
Standard |
IEC 60601-1, CAN/CSA C22.2 No. 601.1, IEC 60601-1-2 |
Mattress
Mattress Model No |
FM‐PHR0007 |
Size (inch) L x W x H |
80” x 36” x 10” (42” and 48” widths available) |
Weight |
28.6 lbs |
Weight Capacity |
600 lbs. (800 lbs. for 42”W and 1000 lbs. for 48”W) |
Cell Number |
18 cells |
Cells Material |
Nylon coated with PU with Zipper Cover |
Cover Material |
Nylon woven fabric w/ PU coating finish; also available with a built in 4.5” raised foam bolster with egress cutout |
Base Material |
Woven Polyester fabric w/ PVC backing |
