New product

36", 42" or 48" 3-1 Alternation, 8" Replacement, True Low Air Loss, Pulsation, Happy Heel Control

Read whole description

Limited special offer

$2,399.00

Before $4,966.00

- +

Select options for product
Mattress System

  Quantity:
Shipping Rates
Free shipping on orders over $100 or more

BROCHURE

Description

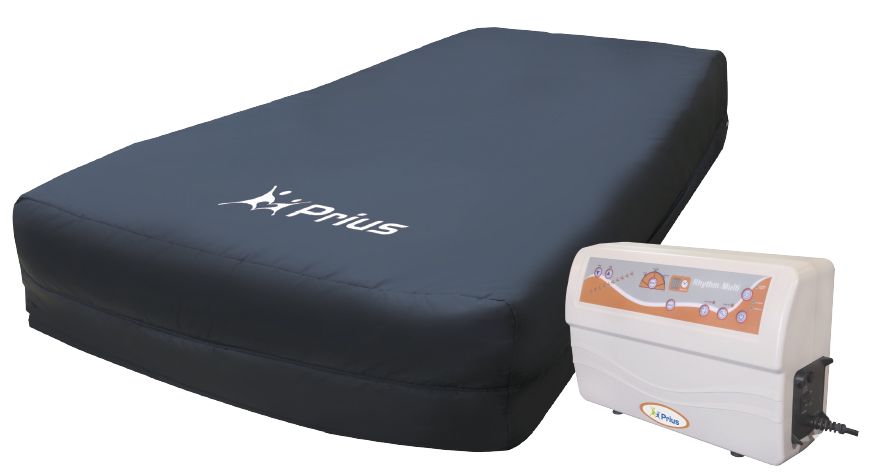

36", 42" or 48" 3-1 Alternation, 8" Replacement, True Low Air Loss, Pulsation, Happy Heel Control

Features

  •  8” air cell mattress replacement
  •  3-1 alternation and static
  •  Low air loss therapy
  •  Pulsation therapy
  •  Happy Heel – dial softness control for the foot section
  •  Auto Firm provides immediate firm surface
  •  High vapor permeable and quilted nylon cover
  •  Optional cover available for fall prevention – built in 4.5” foam bolster with egress cutout.
  •  2” convoluted foam base
  •  Cable Management System – provides conduit for powers cords to stay off floor, eliminate tripping hazards
  •  Integrated glide sheet to base cover for easy transferring
  •  Visual and audio alarm for low pressure and power failure with alarm mute function
  •  Keypad lock out function
  •  10 electronic adjustable comfort settings
  •  Modularized design for air mattress
  •  Integrated power cable retainer
  •  SWL 600lb for 36”, 750lb for 39”, 800lb for 42”, 1000lb for 48”
  •  Quick CPR deflation within 20 seconds

 Clinical Considerations:

  •  Multiple stage 1, 2, 3 or 4 pressure ulcer

Specifications

 Control Unit

Model Name

Rhythm Multi

Model No.

FC-PHR0009

Size (inch) L x W x H

17.7” x 6.8” x 10.8”

Weight (lbs.)

13.2

Cycle Time

3~95 min

Min Operating Pressure

10 +/- 3mmHg

Max Operating Pressure

61 +/- 4mmHg

Flow-rate

1200 L per minute

Rated Voltage

AC 110-120V

Rated Frequency

60 Hz

Fuse Rating

5A 250V

Max Current

5A

Classification

Class I, Type BF

Not AP or AGP type

Mode of Operation

Continuous

Environment (Temperature)

Operation: 15to 35(59F to 95F)

Storage:5℃to 60℃(41F to 140F)

Environment (Humidity)

Operation: 30% to 75% non-condensing

Storage: 30% to 100% non-condensing

Standard

IEC 60601-1,

CAN/CSA C22.2 No. 601.1,

IEC 60601-1-2

 Mattress

Mattress Model No

FM‐PHR0007

Size (inch) L x W x H

80” x 36” x 10” (42” and 48” widths available)

Weight

28.6 lbs

Weight Capacity

600 lbs. (800 lbs. for 42”W and 1000 lbs. for 48”W)

Cell Number

18 cells

Cells Material

Nylon coated with PU with Zipper Cover

Cover Material

Nylon woven fabric w/ PU coating finish; also available with a built in 4.5” raised foam bolster with egress cutout

Base Material

Woven Polyester fabric w/ PVC backing
