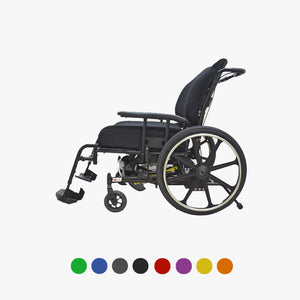

Future Mobility Orion II 500 Tilt-in-Space Bariatric Wheelchair

The Future Mobility Orion II 500 Tilt-in-Space Bariatric Wheelchair is a heavy-duty complex rehabilitation wheelchair designed to provide superior positioning, pressure relief, and long-term comfort for larger individuals. Engineered to safely support users weighing up to 500 pounds, the Orion II 500 combines exceptional strength, advanced seating technology, and extensive adjustability to meet the demands of both users and caregivers.

The Orion II 500 features an advanced tilt-in-space seating system that redistributes body weight to reduce pressure, improve posture, and enhance comfort throughout the day. An optional power tilt system allows effortless repositioning at the touch of a button, making transfers and pressure management even easier for caregivers and users alike.

Built on a reinforced steel frame, the Orion II 500 accommodates a wide range of body sizes with adjustable seat widths from 24 to 32 inches and seat depths from 16 to 24 inches. Multiple seat-to-floor height options and adjustable rear axle positions allow clinicians to customize the wheelchair for optimal positioning, propulsion, and accessibility.

The standard seating system includes a durable seat pan, supportive Orion backrest, and positioning cushion for dependable comfort. Height-adjustable armrests, swing-away front riggings, flip-up footplates, adjustable stroller handles, and a multi-adjustable headrest system provide the flexibility needed for individualized rehabilitation seating.

Large composite rear wheels, soft-roll urethane casters, rear crossbar reinforcement, and quick-flip anti-tippers provide excellent stability, maneuverability, and durability in home, rehabilitation, and long-term care environments. Optional quick-release axles make transportation and maintenance more convenient.

Designed for full-time bariatric seating, the Orion II 500 delivers the durability, clinical positioning, and comfort required for long-term mobility while promoting greater independence and caregiver efficiency.

Ideal For

• Bariatric users

• Complex rehabilitation seating

• Long-term wheelchair users

• Pressure relief and weight redistribution

• Home, rehabilitation, and long-term care environments

• Caregiver-assisted mobility

Features

• Supports up to 500 lbs.

• Heavy-duty reinforced steel frame

• Advanced tilt-in-space seating system

• Optional power tilt

• Adjustable seating system

• Standard seat pan with positioning back and cushion

• Adjustable seat widths from 24" to 32"

• Adjustable seat depths from 16" to 24"

• Multiple seat-to-floor height options (16", 17", or 18")

• Height-adjustable T-style armrests with padded vinyl arm pads

• Adjustable stroller handles with trigger release

• Multi-adjustable headrest system

• Swing-away 70° front riggings

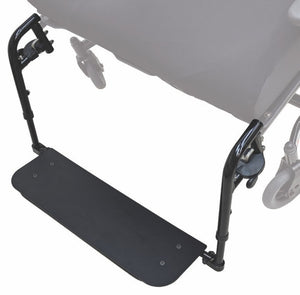

• Flip-up angle-adjustable composite footplates

• Heel loops

• Posi-Lock swing-away front riggings

• Push-to-lock wheel locks with extensions

• Rear crossbar for additional frame stability

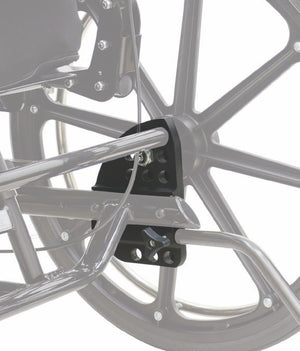

• Adjustable axle plates

• Optional quick-release rear axles

• Quick-flip anti-tippers

• Soft-roll urethane casters

• Composite rear wheels with handrims

Specifications

Weight Capacity

• 500 lbs.

Product Weight

• 70 lbs. (without cushion, back, armrests, or front riggings)

Frame

• Reinforced Steel

Seat Width

• Adjustable from 24" to 32"

Seat Depth

• Adjustable from 16" to 24"

Seat-to-Floor Height

• 16", 17", or 18"

Rear Wheels

• 20", 22", or 24" Composite Urethane

• Size varies based on seat-to-floor height

Front Casters

• 5", 6", 7", or 8" Urethane

• Size varies based on seat-to-floor height

Back System

• Adjustable Orion Back

Seat Angle Options

• -7°, 0°, 7°, 14°, or 21°

Front Riggings

• Standard 70° Swing-Away

Warranty

• Lifetime Limited Warranty on Frame

• 1-Year Warranty on Materials and Workmanship

• 1-Year Warranty on Control Box, Battery Charger, Actuator, and Hand Control (Power Tilt Models)

• 6-Month Warranty on Power Tilt Batteries

• 90-Day Warranty on Upholstery

The Future Mobility Orion II 500 Tilt-in-Space Bariatric Wheelchair provides exceptional strength, advanced positioning, and dependable comfort for users requiring a high-capacity rehabilitation wheelchair. With its reinforced steel construction, customizable seating system, optional power tilt, and clinical-grade positioning features, the Orion II 500 is an outstanding solution for long-term bariatric mobility, pressure management, and everyday independence.
