Orion II 500 Tilt-in-space Tilting Bariatric Wheelchair 500lbs - WMA5FM010 by Future Mobility

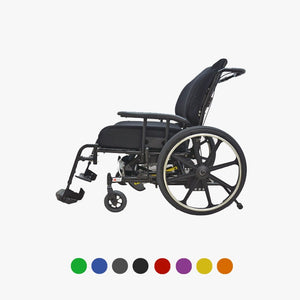

ORION II COLORS

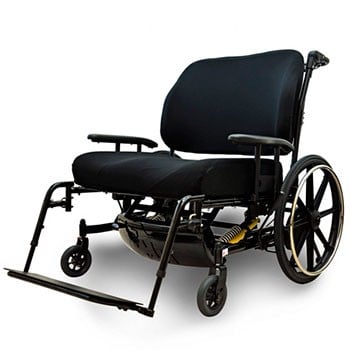

Tilt Wheelchair Orion II 500 is the most innovative and affordable tilt-in-space wheelchair on the market today for individuals weighting from 250 lbs. to 500 lbs. Developed for those individuals requiring adjustability to redistribute their body weight for optimal positioning purposes, the Tilt Wheelchair Orion II 500 assists in allowing the user to function independently.
*Any custom order is not eligible for return.
Features
- Standard Seat Pan
- Includes Basic Back & Ideal Cushion (Standard sizes)
- Power Tilt Option available
- Standard 16" Seat to Floor Height

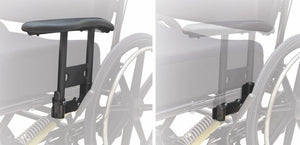

- T-Style Adjustable Knob Release Armrest with 14" Vinyl Armpads

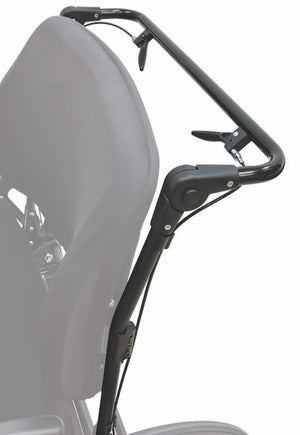

- Adjustable Hinged Stroller Bars

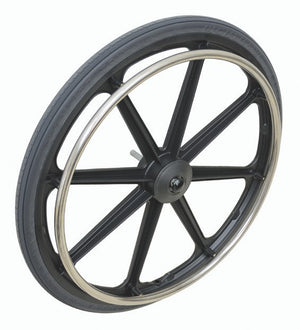

- 22" Mag Wheels with Handrims
- Soft Roll 6" Casters
- Push to Lock Wheel Locks with extensions
- Quick Flip Anti-Tippers
- Single Multi-axle headrest hardware and Profit Medium Headrest with Bracket & Clamp

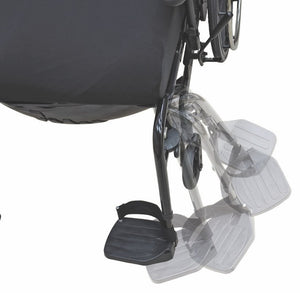

- Swing Away 70 Degree Legrest

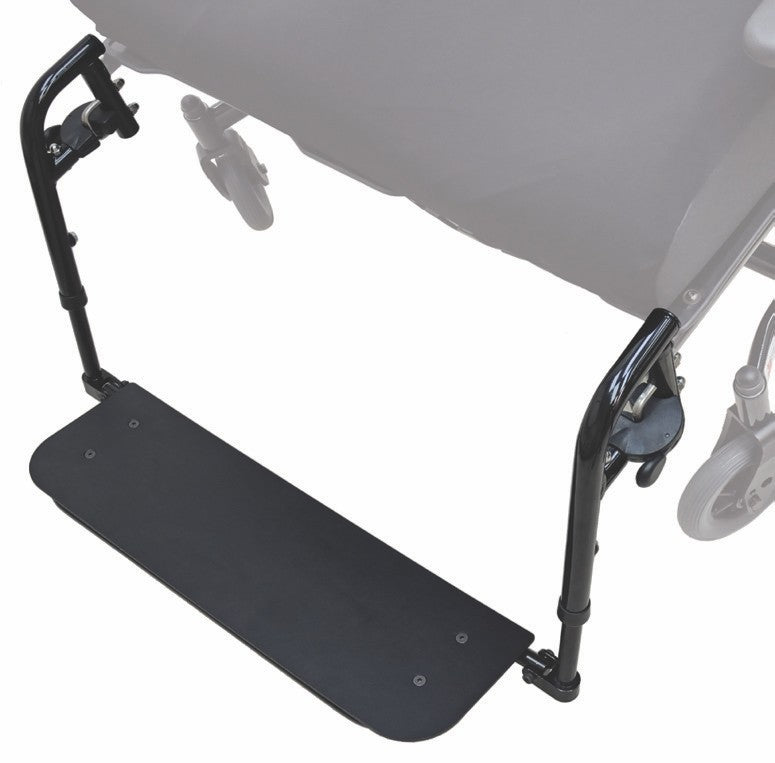

- Composite Angle Adjustable Footplates
- Weight Capacity: 500 lbs.
- 70 Degree Pinstyle Front Rigging
- Heel Loops
- Flip Up Foot Plates
- Posi Locks Swing Front Riggings
- Rear Crossbar Stability
- Push Pull Wheel Lock

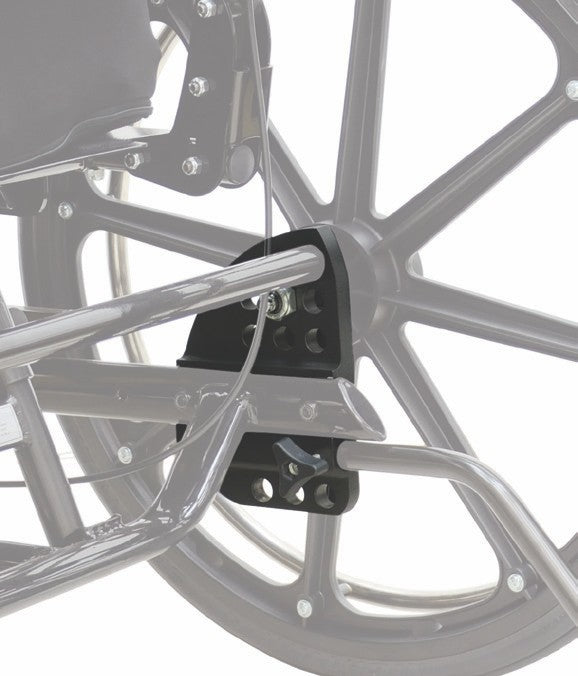

- Adjustable Axle Plate
- Quick Release Axle
- Handles Trigger
- Adjustable Angle of Stroller Bar
Specifications
- Seat Widths: 24”- 32”
- Seat Depths: 15”- 22”
- Overall Dimensions: 26” X 18” Tilt & Recline, 16 1/2” Stf)
- Seat To Floor
- Height: 15 1/2”- 18”
- Rear Wheel: 12”, 20”, 22” Or 24” Composite Urethane
- Caster Size: 5”, 6”, 8” Urethane
- Back Style: Orion Back
- Adjustable Back
- Angle: -7o, 0o, 7o, 14o, 21o
- Front Rigging:70° Standard
- Weight Capacity: 500 Lbs (228 Kg)
- Product Weight: 70 Lbs. (not Including Cushion, Back, Arm Rests And Front Riggings)
- Frame Material: Steel
Warranty
The Orion II 500 is warranted to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase and lifetime for the frame. Upholstery for 90 days, under normal use.
Power Tilt Batteries are warranted for six (6) months while the control box, battery charger, actuator and hand control are warranted for one (1) year.
| Frame Finish |
Wet Black, Silver Lining, Cobalt Blue, Green Apple, Burnt Orange, Lilac Purple, Fire Red, Yellow Ribbon, No Value |
|---|
