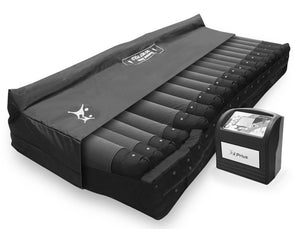

Prius DynaFlow Mattress System

Prius DynaFlow Mattress System
BROCHURE
DynaFlow Mattress System is a medium to high risk system for patients who are at risk of developing Pressure Ulcers according to your sound clinical judgment. DynaFlow can also be used for patients who have an existing stage 1,2,3 and 4 Pressure Ulcer, in conjunction with your hospitals policy on pressure area management. Pressure mapping-DynaFlow provides constant low pressure by redistributing the patient's pressure over a greater area than a standard mattress.
Features
-
10 Digital Adjustable Comfort Control
-
User-Friendly LCD Control Panel
-
Auto Set Function
-
10” air cell mattress replacement
-
Static / Pulsation Function
-
3-1 Alternating Pressure Function
-
Rotation Therapy is NOT available
-
Visual and audio low pressure alarm
-
User-Friendly LCD Control Panel
-
2" convoluted foam base provides additional support during power failure situation
-
CPR quick release system deflates the system within 20 seconds
-
4" Air Bolsters with Quick Release
Clinical Considerations:
Multiple stage 1, 2, 3 or 4 pressure ulcer
Specifications

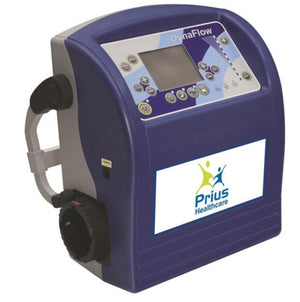

Control Unit
Model Name |
DynaFlow |
Model No. |
PHR-DYNA36, PHR-DYNA42, PHR-DYNA48 |
Size (inch) L x W x H |
(L)12.3" x (W)6.7" x (H)4.9" |
Weight |
14.9 lbs |
Alternation Time |
10 minutes |
Min Operating Pressure |
15 +/‐ 4mmHg |
Max Operating Pressure |
52 +/‐ 4mmHg |
Cycle Time |
3-95 mins |
Rated Voltage |
AC 110‐120V |
Rated Frequency |
60 Hz |
Fuse Rating |
1A 250V |
Max Current |
5A |
Classification |
Class I, Type BF
|
Mode of Operation |
Static / Pulsation Function 3-1 Alternating Pressure Function |
Bottom Out Alarm |
Visual / Audio |
Power Failure Alarm: |
Visual / Audio |
Mattress
Mattress Model No |
DynaFlow |
Size (inch) L x W x H |
(L) 80" x (W)36" x (H)10" (L) 80" x (W)42" x (H)10" (L) 80" x (W)48" x (H)10" |
Cell in Cell Dimensions |
4.5” therapy, 3.5” static air |
Weight |
39.6 lbs for 36" |
Cell Number |
18 cells |
Cells Material |
Black Nylon with PU Coating |
Cover Material |
Blue Nylon w/PU coating finish |
Base Material |
Black Polyester w/ PVC Coating |
Weight Capacity |
600 lbs. |
