Lumex Patient Hydraulic Lift by Graham Field
Lumex Patient Hydraulic Lift is a heavy gauge steel constructed patient lift with a 6 point spreader bar and a 360 degree rotation. This lift uses Lumex six and four point slings or 2 point slings. The base is manually adjustable. The ergonomic placement of hydraulic pump handle facilitates the ease of use. Disassembles for easy storage and can lift a maximum weight of 400 lbs.
Slings, chains, and other accessories for this lift must be purchased separately.
Features
-
Heavy gauge steel construction
-
Six point spreader bar with 360° rotation
-
Uses Lumex® six-point, four-point or two-point slings
-
Foot pedal manually adjustable base (LF1031FP model)
-
Ergonomic placement of hydraulic pump handle facilitates ease of use
-
Disassembles for easy storage
-
Maximum weight capacity 400 lb
-
Optional digital scale available
Specifications
| Type | Max Weight Capacity | Floor Clearance | Lifting Range Min Height | Max Height | Overall Length | Overall Height | Overall Width | Max Base Width | Min Base Width | Weight | Warranty Frame | |

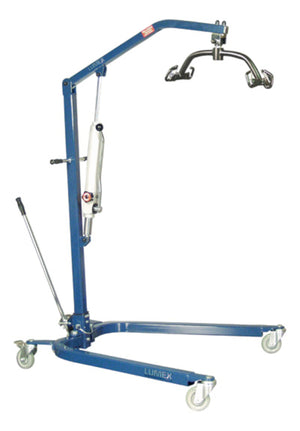

| LF1030 - Blue | Hydraulic | 400 lb | 5.5" | 27.4" | 80.3" | 48" | 55" | 24.6" | 43" | 24.6" | 90 lb | 1 Year Limited |

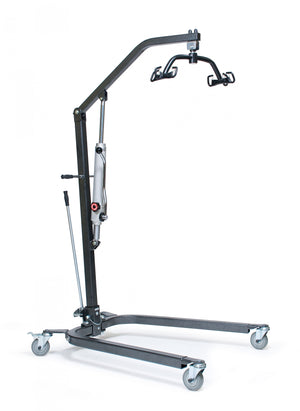

| LF1031 - Black | Hydraulic | 400 lb | 5.5" | 27.4" | 80.3" | 48" | 55" | 24.6" | 43" | 24.6" | 90 lb | 1 Year Limited |

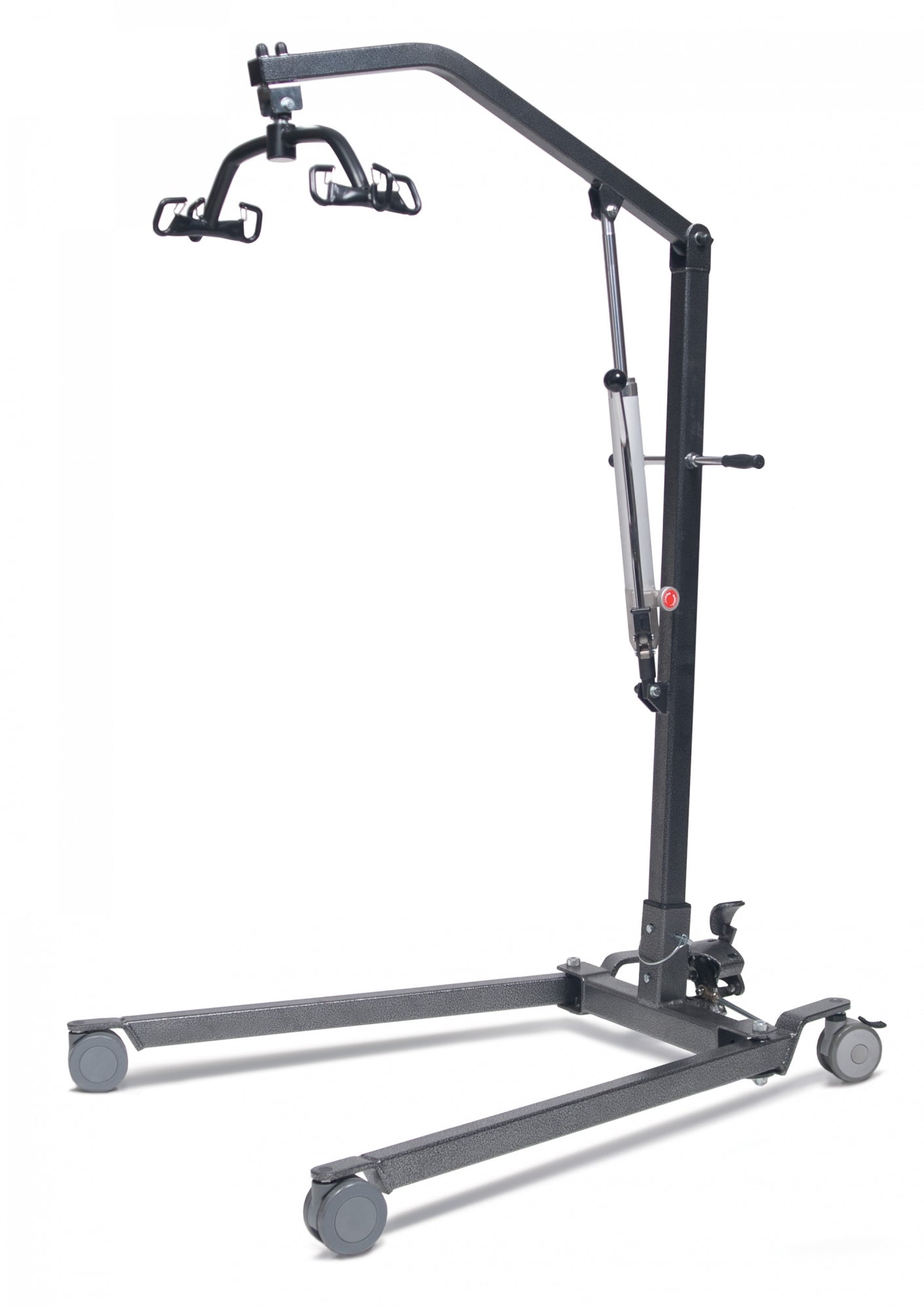

| LF1031FP - With Foot Pedal | Hydraulic | 400 lb | 4.4" | 23.8" | 75" | 53.5" | 56.8" | 26" | 41" | 26" | 90 lb | 1 Year Limited |
Warranty
1 year limited
