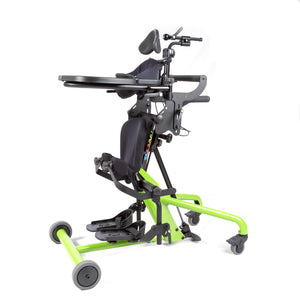

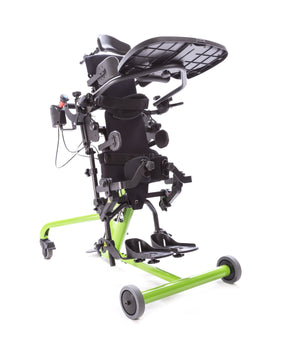

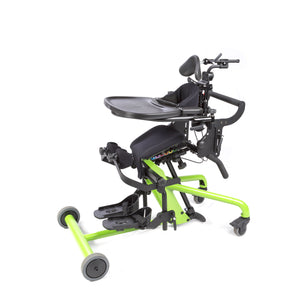

The Bantam line of standers are the only sit to stand standers that can combine the option of supine positioning to create infinite positioning possibilities from 90-90 sitting, fully vertical standing, full supine lying and anywhere in between. No other standers can provide the amount of positioning that is possible with the EasyStand Bantam.
Fits kids 28”-40” tall and up to 50 lbs. Seat Depth Range (from seat pivot) 7″-12″
The Bantam line of standers are the only sit to stand standers that can combine the option of supine positioning to create infinite positioning possibilities from 90-90 sitting, fully vertical standing, full supine lying and anywhere in between. No other standers can provide the amount of positioning that is possible with the EasyStand Bantam.

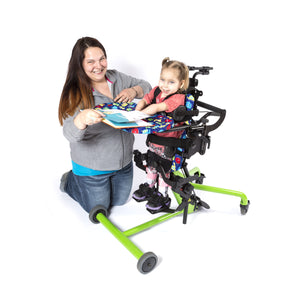

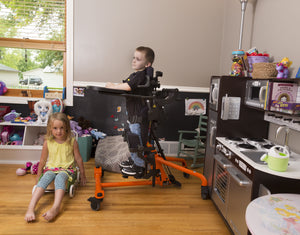

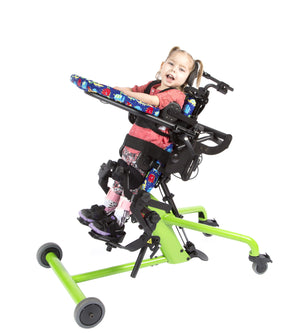

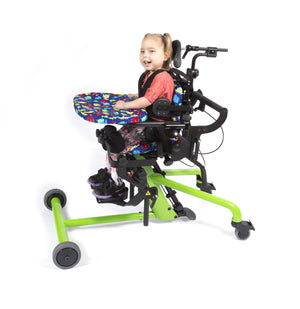

The EasyStand Bantam is the only standing frame to combine a sit-to-stand transition with the added function of an supine stander. By alternating positions, a child can tolerate standing for a longer period of time. Also, when it is safer and easier for a caregiver to transfer and stand a child, the child will stand more often, increasing standing compliance. The Bantam fits kids from early intervention through elementary school.
Features
foot plates
knee pads
gas spring lift
planar seat and back
two front wheels
two rear locking casters
chest strap
choice of frame color: Green, Orange, Purple, or White
Specifications
Base Unit
Approximate Height Range
28″-40″
71-102cm
Weight Limit
50lbs
23kg
Seat Depth Range (from seat pivot to back surface)
7″-12″
18-31cm
Seat Height From Floor (transfer height)
19″
48cm
Seat to Footplate Range (from front of seat)
10″-16.5″
25-42cm
Seat to Footplate Range – Inverted Brackets
4.5″-11″
11-28cm
Kneepad Depth Range (from front of seat)
2.5″-8.5″
6-22cm
Kneepad Width
5.5″
14cm
Back Height From Seat, Contour & Planar
11″-13″
28-33cm
Back Height From Seat, Contour
12.5″-14.5″
32-37cm
Weight of Basic Unit
54lbs
24.5kg
Frame Footprint – Standard
24.5″x36.5″
62x93cm
Upholstery
Black Nylon/Neoprene
Frame Color
Green, Orange, Purple or White Powder Coat
Lifting Mechanism
Gas Spring Lift
Kneepad (inside access of pad)
2.5″Wx5″H
6x13cm
Footplate Size
7.75″Lx3.25″W
20x8cm
Planar Seat Size
9.5″Wx9.5″D
24x24cm
Planar Back Pad Size
9.5″Wx6.5H
24x17cm
Shadow Tray
Shadow Tray Size
21″x24″
53x61cm
Shadow Tray Height (from seat)
7″-10″
18-25cm
Weight of Black Molded Shadow Tray Assembly (add 3lbs or 1.4kg for Acrylic)
11.7lbs
5.3kg
Chest Pad Depth Range
0″-11″
0-28cm
Mobile
Mobile Footprint
24″x38″
61x97cm
Mobile Handrim Height (from seat pivot)
12.75″
32cm
Mobile Handrim Height (from floor)
31″
79cm
Mobile Handrim Height-Tall (from seat pivot)
16.75″
43cm
Mobile Handrim Height-Tall (from floor)
35″
89cm
Mobile Wheelbase
31″
79cm
Mobile Fore/Aft Handrim Positional Range (from seat pivot)
4.75″-19″
12-48cm
Standard Bantam w/ Mobile Weight
70lbs
32kg
Weight of Mobile Option
25lbs
11kg
Mobile Drive Chain Tensioning Method
Tension Jack-Screw
Mobile Wheel Locks
1/4 turn rotation to lock/unlock
Mobile Threshold Height
.75″ Maximum
2cm Maximum
Options
Hip Supports Width Range
6″-9″
15-23cm
Frame Footprint – Swivel Casters
30″x38″
76x97cm
Lifting Mechanism
Manual Hydraulic Lift
Lifting Mechanism
Pow’r Up Lift
Supine Positioning
0-90°
T-Style Handle-Extends (each direction)
7″
18cm
Foot Straps – Range Over Arch
2″-9″
5-23cm
Multi-Adjustable Footplates Plantar/Dorsi
+/- 20°
Kneepad Height Range
+/- 1/2″
+/- 1.3 cm
Multi-Adjustable Footplates Fore/Aft
+/- 3/4″
+/- 1.9cm
Multi-Adjustable Footplates Rotation
30° left/right
Multi-Adjustable Kneepads Width Range
5.5″-10″
14-25cm
Hip Support Pad Size
3.5″Wx3.5″H
9x9cm
Hip Supports Height Range
2″ (3 positions)
5cm
Lateral Support Pad Size
4″Wx6″H
10x15cm
Lateral Supports Width Range
8″-12″
20-30cm
Contoured Seat Size
8.5-9.5″Wx9.5″L
22-24x24cm
Contoured Back Pad Size
10″Wx6.5″H
25x17cm
Chest Vest
9.5″Lx9W
24x23cm
Head Support Height Range (from seat, small planar only)
17″-24″
43-61cm
Head Support Height Range (all extra small and small contour)
15″-24″
38-61cm
Head Support Depth Range (from backrest)
+1″ to -2.75″
+3 to -7cm
Positioning Belt – Hip Circumference
0-23″
0-59cm
Swing-Away Front End Tray Height Range
9.25 to 21.25″
23 to 54 cm
Swing-Away Front End Tray Fore/Aft Range (from seat pivot)
+10 to -11
+26 to -28 cm
Locking Caster Diameter
5″
13cm
Supine

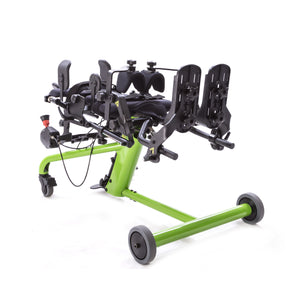

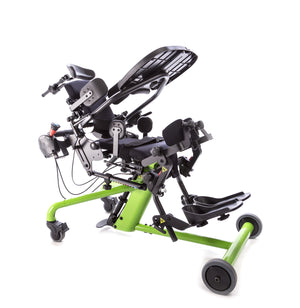

Allows the Bantam to be used as a supine or sit-to-stand stander.User can be transferred in flat-to-load, seated, or hip-knee flexion position. Adjusts from 0-90° supine. Head support required, Shadow Tray recommended.
Planar Back
Flat back provides additional support.
Lift Mechanisms
Dual Control
Allows both foot and hand control of the gas spring lift. Must order Push Handle PA5594.
Gas Spring Lift Lockout
Locks gas spring in any position from lying down to fully upright and prone positions.
Pow’r Up Lift
Brings the user to the standing position with the touch of a button. Includes light touch controller, rechargeable battery and charger, Linak® actuator and an emergency release.
Hydraulic Actuator with Removable Handle
Allows the user to independently transition to standing with a manual hydraulic actuator. Handle is adjustable and removable. Replaces gas spring lift.
Mobile
Allows self-propulsion while sitting or standing. Push rims adjust forward and aft. Mobile footprint 24”x38” (61x97cm). Not available with Supine, Trays or Front Swivel Casters.
Handle Extensions
Quad Grip Handle Extension
Attaches to the actuator handle for users with limited dexterity. Adjusts for various hand sizes. Not available with Pow’r Up Lift. Hydraulic actuator required.
T-Style Handle Extension
Attaches to the actuator handle for users with limited range of motion. Makes the first few pumps easier and descending more accessible. Adds additional 7” (18cm) in each direction. Not available with Pow’r Up Lift. Hydraulic actuator required.
Elbow Pad
Additional padded support surface on the black molded or clear tray. Only available with 21″x24″ tray. Overall width 21.5” (55cm), pad extends back 3.75” (10cm) posterior from current table edge for additional upper body/extremity support. Not available with Mobile option.
Casters
Allows for easier movement of stander. Replaces front wheels. Extends the footprint of the unit to 28.25”x47” (72x119cm).
Foot Plates
Foot plates are adjustable forward/aft /- .75” extra 1.5″ , plantar/dorsi /- 20°, toe-in/toe-out, swivel 30° left/right, in addition to height. Two sizes.
Foot Holders
Adjustable in height.
Foot Straps
Secure Ankle/Foot Straps
Velcro® and D-ring adjustment holds feet securely in place at ankle and toes with multiple attachment slots for proper foot positioning.
Foot Straps
Velcro® and D-ring adjustment holds feet in alignment with multiple attachment slots for proper foot positioning. Straps measured in length over top of foot, with approximately 1.5″ of Velco® overlap.
Knee Pads
Knee pads come in three sizes. Also Available in Swing-a-Way or Roho.
Calf Pads
Supports the legs when using the supine option.
Positioning Belt
2” (5cm) wide positioning belt has a D-ring Velcro® closure, provides hip stability for user. Fits hip circumference up to 23” (58cm) for extra small size and up to 29” (74cm) for small size.
Lateral Supports
Lateral Supports
Keeps the upper torso in symmetrical alignment. Not available with Form to Fit upper body support.
Lateral Supports with Elbow Stop
Lateral Supports with Elbow Stop works as a lateral support and elbow rest. Great for the supine position. Not available with Form to Fit upper body support.
Lateral Supports with Elbow Stop and Arm Rest
Lateral Supports with Elbow Stop and Arm Rest works as a lateral support, elbow rest and armrest. Great for the supine, upright and prone position. Not available with Form to Fit upper body support.
Elbow Stop with Arm Rest
Elbow Stop with Arm Rest is great for loading and bringing to upright. Works with both planar and form to fit upper body supports. For planar and form to fit pads.
Chest Vest
Neoprene® with camlock adjustment provides anterior trunk support for child. Comes in X or Y style.
High Mount Chest Vest Bracket
Moves mounting points for chest vest higher to secure shoulders in position. Chest vest not included.
Head Support
Head support
Mobile Tray
Provides anterior support while using the mobile option. Tray is 4″x12″ and has height and depth adjustment
Shadow Trays
Shadow tray is accessible in all positions and provides anterior support as user moves from sitting to standing. Adjustable in depth, height, and tray angle. Tray size is 21”x24” (53x61cm). Back support required.
Tray Forearm Wings
Black or clear molded tray forearm wings. Wings give additional area to rest arms when in standing position. Not available with Mobile option.
Hand Grips for Clear Tray
Hand Grips provide additional arm and hand support and alignment. Easily movable for precise arm positioning. Attaches with suction cups. A clear acrylic tray is required.
Tool Pouch
Tool Pouch holds the assembly tools provided with the stander. Attaches to unit with Velcro® straps. Tools not included.
