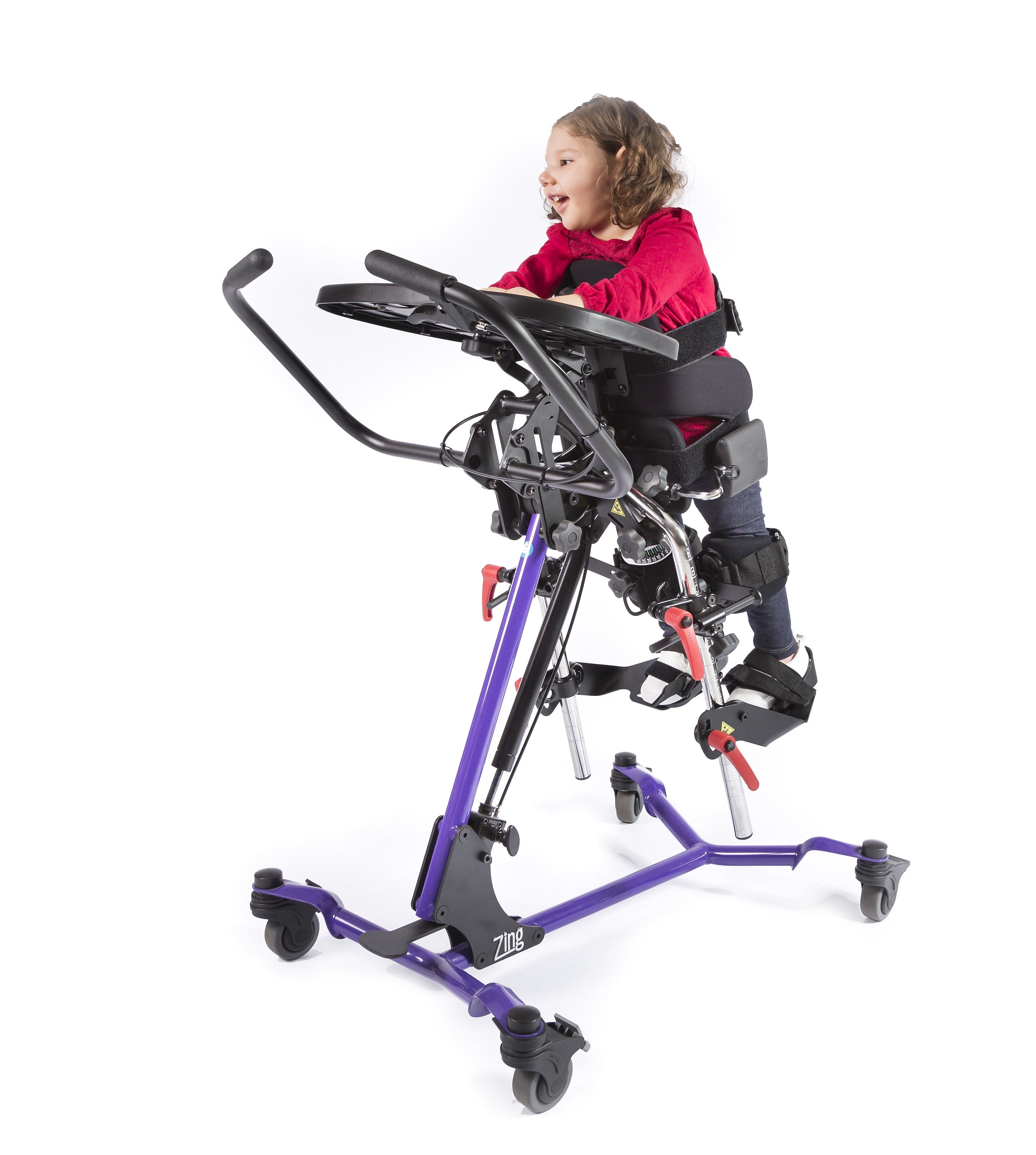

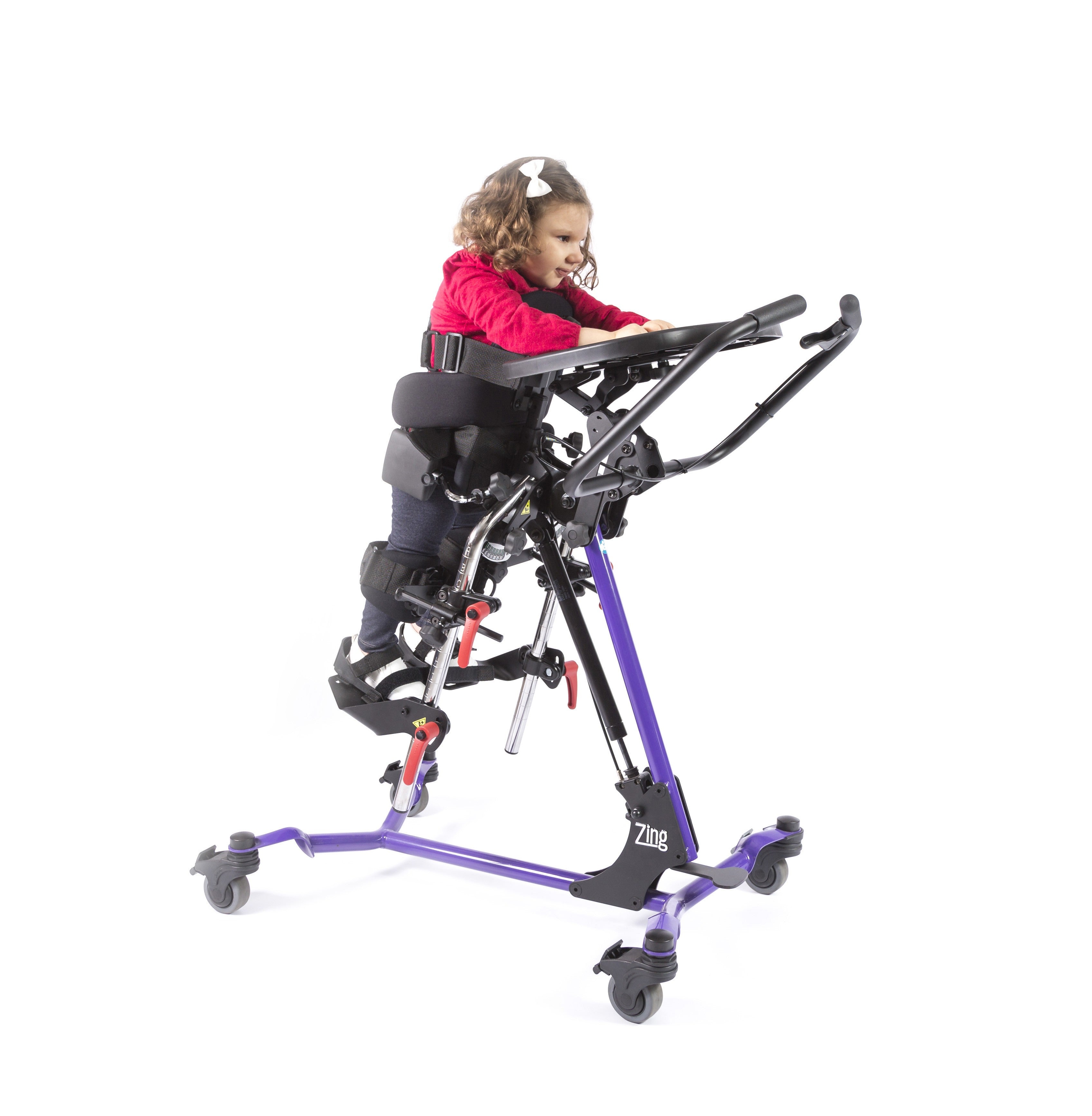

The Zing Prone is a single position stander but is one of the few to offer a flat-to-load transfer position at a comfortable height of 32″. Prone positioning from 0-90 degrees and also features independent leg abduction up to 30 degrees (60 degrees bilaterally).
Description
Size 1 fits: children from infancy up to 44” and up to 70 lbs.
The Zing Prone is a single position stander but is one of the few to offer a flat-to-load transfer position at a comfortable height of 32″. Prone positioning from 0-90 degrees and also features independent leg abduction up to 30 degrees (60 degrees bilaterally).
Features
Specifications
Height Range | 18″-44″ | 51-112cm |
Weight Limit | 70lbs | 32kg |
Transfer Height (Horizontal Position) | n/a | n/a |
Pelvic Support to Foot Plate Range | 7″-22″ | 18-56cm |
Upper Body Support Height Range | 4″ | 10cm |
Kneepad Depth Range | 5″ | 13cm |
Kneepad Inside Width (extra small) | 1.5″ | 4cm |
Kneepad Inside Width (small) | 2.5″ | 6cm |
Kneepad Dimensions (extra small) | 4″x3.5″ | 10x9cm |
Kneepad Dimensions (small) | 4×4″ | 10x10cm |
Kneepad Height Range | +/- .75″ | +/- 2cm |
Multi-Adjustable Kneepads Width Range 4″Hx3.5″W | 4-9″ | 10-23cm |
Multi-Adjustable Kneepads Width Range 4″Hx4″W | 4.5-9″ | 11-23cm |
Multi-Adjustable Kneepads Height Range | +/- .75″ | +/- 2cm |
Weight of basic unit | 55lbs | 25kg |
Frame Footprint – Caster-to-Caster | 20″x28″ | 51x71cm |
Frame Footprint – Maximum Dimensions | 21.5″x29.5″ | 55x75cm |
Upholstery | Black nylon/Neoprene or Molded Urethane | |
Frame Colors | Green, Purple, White, or Orange | |
Casters and Wheels Diameter | 3″ | 8cm |
Supine Positioning | n/a | |
Prone Positioning | 20 degrees | |
Leg Abduction | 30° per side | |
Foot Straps, 8″L – measured in length over top of foot | 8” | 20cm |
Foot Straps, 10″L – measured in length over top of foot | 10″ | 25cm |
Secure Foot Straps, 8″L – measured in length over top of foot | 8″ | 20cm |
Secure Foot Straps, 10″L – measured in length over top of foot | 10″ | 25cm |
Foot Plate Size 6″Lx3″W | 6″Lx3″W | 15x8cm |
Foot Plate Size 7.75″Lx3.25″W | 7.75″Lx3.25″W | 20x9cm |
Foot Plate Size 9.75″Lx4″W | 9.75″Lx4″W | 25x11cm |
Foot Plate Platform | 8″Lx12″W | 20x30cm |
Multi-Adjustable Foot Plates – Plantar/Dorsi | +/- 20° | |
Multi-Adjustable Foot Plates – Fore/Aft | +/- .75″ | +/- 2cm |
Multi-Adjustable Foot Plates Rotation | 30° left/right | |
Tray Size | 11×19″ | 28x48cm |
Hip Support Pad Size | 3.5″Hx3.5″W | 9x9cm |
Hip Supports Width Range | 6-10″ | 15-25cm |
Lateral Support Pad Size | 3.5″Hx3.5″W | 9x9cm |
Lateral Supports Width Range, 4-8″ | 4-8″ | 10-20cm |
Lateral Supports Width Range, 7-11″ | 7-11″ | 18-28cm |
Lateral Supports Height Range | 3.5″ | 9cm |
Lateral Supports Fore/Aft Range | 1″ | 3cm |
Planar Pelvic Support Pad 5×7″ | 5×7″ | 13x18cm |
Planar Pelvic Support Pad 5×9″ | 5×9″ | 13x23cm |
Form to Fit Pelvic Support Pad 5×7″ | 5×7″ | 13x18cm |
Form to Fit Pelvic Support Pad 5×9″ | 5×9″ | 13x23cm |
Planar Upper Body Support Pad 5×7″ | 5×7″ | 13x18cm |
Planar Upper Body Support Pad 5×9″ | 5×9″ | 13x23cm |
Form to Fit Upper Body Support Pad 5×7″ | 5×7″ | 13x18cm |
Form to Fit Upper Body Support Pad 5×9″ | 5×9″ | 13x23cm |
Chest Pad | 3″Hx8″W | 8x20cm |
Chest Strap (Pad Size) | 5×8″ | 13x20cm |
Chest Strap – User Circumference | Up to approx 24″ | Up to approx 61cm |
Positioning Belt – Hip Circumference | Up to approx. 24″ | Up to approx. 61cm |
Mast is the base for positioning options including foot plates, knee supports, pelvic supports, upper body supports and head supports.
Mast is the base for positioning options. Mast with abduction allows for 0-30 degrees of independent leg abduction or 60 degrees bilaterally. Standing in abduction may promote proper musculoskeletal development and development of the acetabulum (hip socket).
Dual Control
Allows both foot and hand control of the gas spring lift. Must order Push Handle PA5594.
Gas Spring Lift Lockout
Locks gas spring in any position from lying down to fully upright and prone positions.

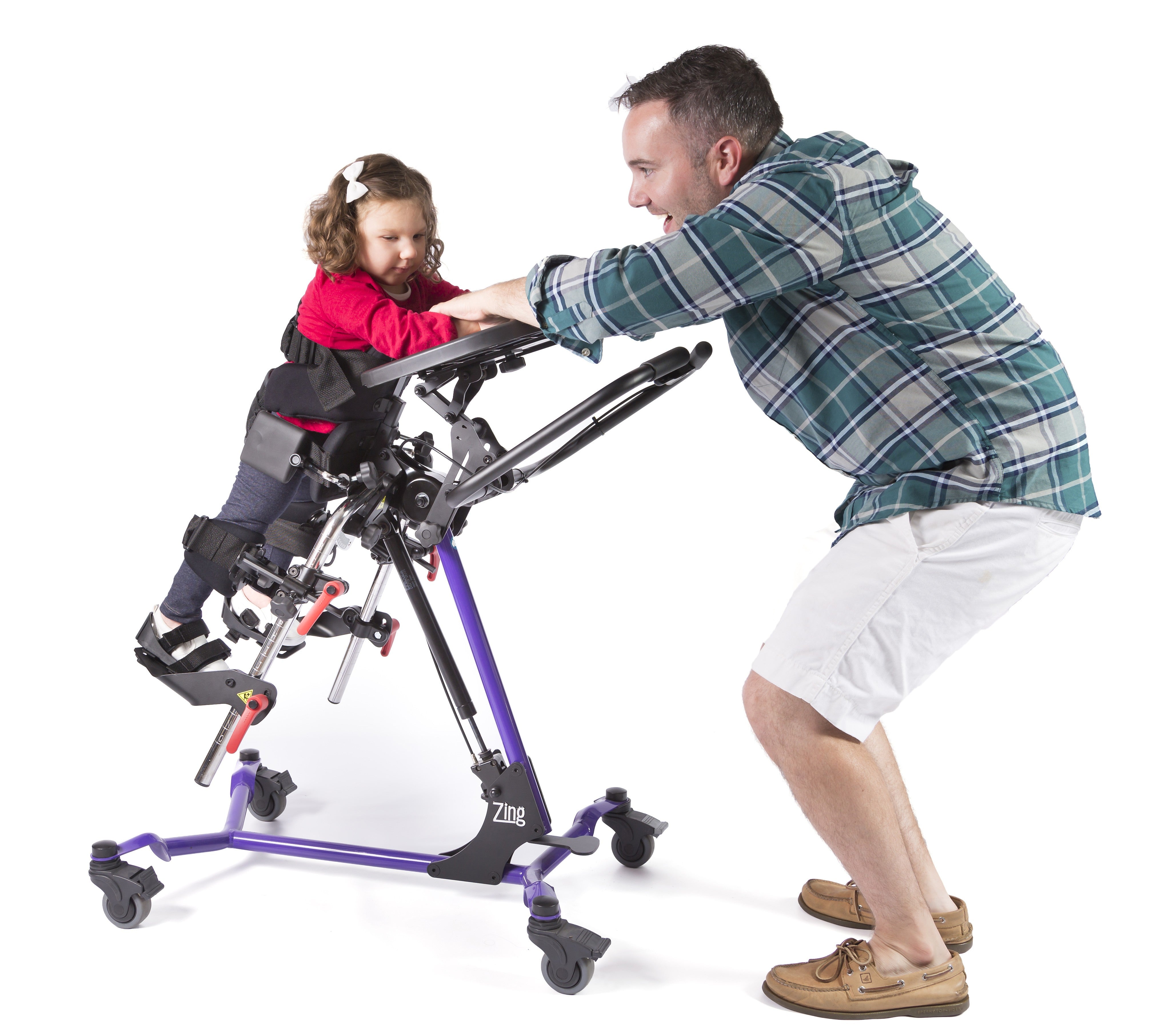

Makes pushing the stander easier for the caregiver and also aids in lifting and lowering the child.
Great for transporting stander. Directionally locks one caster while leaving the other three free to swivel.
Platform Foot Plate
Adjustable in height. Foot holders and foot straps can be added for more positioning of the feet.
Adjustable Foot Plates
Foot plates are adjustable forward/aft /- .75” extra 1.5″ , plantar/dorsi /- 20°, toe-in/toe-out, swivel 30° left/right, in addition to height. Two sizes.
Foot Holders for Platform Foot Plate
Use with the Platform Foot Plate, gives added positioning of users feet. Three sizes.
Use with the Platform Foot Plate, gives added positioning of users feet.
Secure Ankle/Foot Straps
Velcro® and D-ring adjustment holds feet securely in place at ankle and toes with multiple attachment slots for proper foot positioning.
Foot Straps
Velcro® and D-ring adjustment holds feet in alignment with multiple attachment slots for proper foot positioning. Straps measured in length over top of foot, with approximately 1.5″ of Velco® overlap.
Calf Pad with Knee Strap
Gives support from the back of the calf. Adjustable in height and fore/aft. Not available with PA5532 Mast with Leg Abduction.
Multi-Adjustable Knee Pads
Multi-Adjustable knee pads are adjustable in swivel, height /-.75″ (2cm), width 4″-9″ (10-23cm), in addition to depth range of 5″ (13cm).
Great for adapting to knee contractures. Gives support from the back of the calf. Adjustable up and down with knee pad and for/aft 4″ independently.
Planar Pelvic
Cushioned pad covered with Neoprene®.
Form to Fit Pelvic Support Pad
Form to Fit Pad with built in hip support that can be custom fitted to the user.
Hip Supports for Planar Pads
Keeps the hips in symmetrical alignment. Adjustable from 6″-10″ (15-25cm) with for/aft 4″ (10cm). Pad size is 3.5″x3.5″ (9x9cm). Not available with Form to Fit pad.
Positioning Belt
2″ (5cm) wide belt has a D-Ring Velcro closure, provides hip stability for user. Fits hip circumference up to 24″ (61cm).
Padded Positioning Strap
5″x8″ (13x20cm) pad attached to a 2″ (5cm) belt. Fits hip circumference up to 24″ (61cm).
Planar Pad
Cushioned pad covered with Neoprene®.
Form to Fit Upper Body Pad
Form to Fit Pad with built in lateral support that can be custom fitted to the user.
Lateral Supports
Keeps the upper torso in symmetrical alignment. Not available with Form to Fit upper body support.
Lateral Supports with Elbow StopLateral Supports with Elbow Stop works as a lateral support and elbow rest. Great for the supine position. Not available with Form to Fit upper body support.
Lateral Supports with Elbow Stop and Arm Rest
Lateral Supports with Elbow Stop and Arm Rest works as a lateral support, elbow rest and armrest. Great for the supine, upright and prone position. Not available with Form to Fit upper body support.
Elbow Stop with Arm Rest
Elbow Stop with Arm Rest is great for loading and bringing to upright. Works with both planar and form to fit upper body supports. For planar and form to fit pads.
Neoprene® with camlock adjustment provides anterior trunk support for child.
Form to fit Head support.
Head support.
Black or clear molded tray is accessible in all positions and provides anterior support as user moves from supine to upright and prone positions. Adjustable in depth and height.
Black or clear molded tray forearm wings. Wings give additional area to rest arms when in standing position. Not available with Mobile option.
Hand Grips provide additional arm and hand support and alignment. Easily movable for precise arm positioning. Attaches with suction cups. A clear acrylic tray is required.
Tool Pouch holds the assembly tools provided with the stander. Attaches to unit with Velcro® straps. Tools not included.
Angle Locator helps therapists monitor standing progress.
Washable slip on cover for Planar Pelvic/Upper Body Support Pad.
Washable slip on cover for Planar Pad.
Cover for Form to Fit Upper Body Pad
Washable, padded slip on cover for trays. Not available with Mobile option.
Washable slip on cover for Lateral Supports.
Washable slip on cover for Head Support.
